Sulfur Dioxide Salt Spray Chamber SO2 Salt Spray Test Equipment

Brand Name : ASLi

Model Number : SDH-60 / SDH-90 / SDH-120

Certification : CE, ISO, SGS

Place of Origin : China

MOQ : 1 Set

Price : Negotiation

Payment Terms : Western Union, T/T

Supply Ability : 50 Sets/ month

Delivery Time : 25~30 workdays

Packaging Details : Standard Export Plywood Case

Lab Capacity (L) : 110~500

Saline Capacity (L) : 15~40

Compressed Air Pressure (KGf) : 1.0~6.0

Gas Density : 0.1~1% adjustable

Gas Generated : Titration/cylinder Method

Power : AC220V

Contact Now

Sulfur Dioxide Salt Spray Chamber SO2 Salt Spray Test Equipment

Application:

Sulfur Dioxide Salt Spray Chamber, SO2 Salt Spray Test Equipment are widely applied to the accelerated corrosive testing of the protective layer from metallic materials, as well as parts, electrical components and industrial products. It can reproduce the corrosion process happened to the painted or untreated metal surface. Therefore it can be used to perform various kinds of corrosion test in according to relevant standards, such as ISO6988-1985.

SO2 Salt Spray Test Equipment Technical Parameters:

Model SDH-60 SDH-90 SDH-120

Internal Dimension

WxHxD (mm)

 600x450x400 900x600x500 1200x800x500

External Dimension

WxHxD (mm)

 1100x600x1200 1400x950x1200 1900x1300x1400
Lab Temperature Saline test (NSS ACSS) 35±1 ℃ ;Corrosion Test (CASS)50±1 ℃

Pressure Bucket

Temperature

 Saline test method (NSS ACSS) 47±1 ℃ / Corrosion Test (CASS)63±1 ℃
Lab Capacity (L) 110 270 500
Saline Capacity (L) 15 25 40
Salt concentration 5% concentration of NaCl, or every Liter 5% NaCl add 0.26g CuCl2H2O

Compressed Air

Pressure (KGf)

 1.0~6.0
Spray Volume

1.0~2.0ml /80cm2 /h(working at least 16 hours, and take the average value)
Spray Form Continuous Spraying or Programmable Spraying
Gas Density 0.1~1% adjustable
Gas Generated Titration/cylinder Method
Power AC220V 1∮3 lines 15A AC220V 1∮3 lines 15A AC220V 1∮3 lines 15A

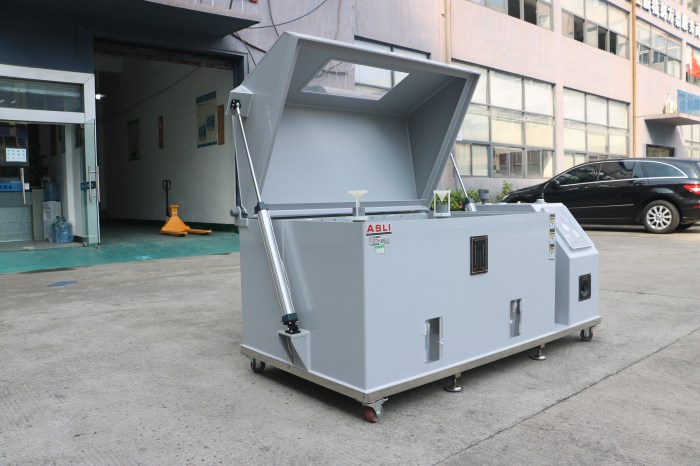

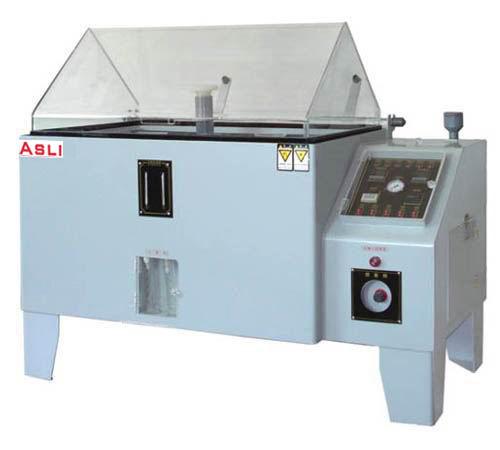

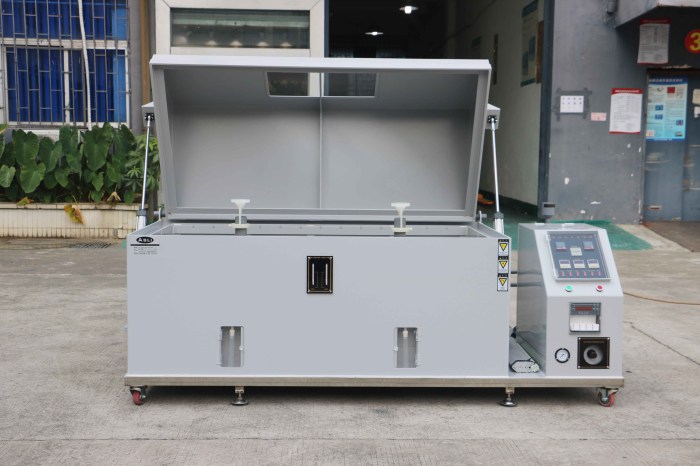

Sulfur Dioxide Salt Spray Chamber SO2 Salt Spray Test Equipment

Sulfur Dioxide Salt Spray Chamber SO2 Salt Spray Test Equipment

Sulfur Dioxide Salt Spray Chamber Features:

Anti-corrosive CPVC plate is formed integrally through pressing and with no leakage.The space between tank lid and tank body is water sealed with no air leaking.While the lid, which is made of transparent material, allows you to observe the testing items inside clearly to know the status. It has been equipped with double air filter ensure that the emission gas brings no contamination to environment. Wired control board and other electrical components are positioned in certain places for easy check and maintain.
